RecSport™ R200 Recreation Systems
Taking care of your well-being isn’t just about working out. It’s about family time, ME time, relaxation and play time. RecSportTM Recreation Systems R200 is ideal for those who want to enjoy all of the physical and non-physical benefits of water. Whether it’s splashing with the kids, relaxing against the soothing hydromassage jets, or enjoying a low-impact workout, it’s all possible – at home – with the R200.
|Dimensions||12′ L X 50″ H X 89″ W|
|Water Capacity||1,335 Gallons|
1,845 lbs. (Dry) / 14,730 lbs. (Filled*)
|Shell Color Options||Alpine White or Ice Gray|
|Cabinet Color Options||Mocha or Gray|
|Swim Technology||3 Swim Jets – Max 215 Gallons Per Minute|
|Swim Jet Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (1) Dual Speed|
|Hydromassage Jets – 27|
1 Large Jet 2 Rotary Jets 2 Directional Jets 22 Mini Jets
|Hydromassage Jet Pump|
2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
|Control System||LCD Control Panel; 230v/30amp, 60 Hz, Field Adjustable 230v/60amp|
1 Illuminated Waterfall
|Water Management System||CD Ozone|
|Effective Filtration Area||100 (2 x 50) Square Feet|
20 Multi-Color LED Points of Light
|Base Pan||Thermoformed ABS Base Pan|
|Energy Efficiency||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law|
|Grab Rails||3 Stainless Steel Grab Rails|
|Music Option||8 Speakers + Subwoofer, Bluetooth® Enabled|
Swim Tether, Resistance Bands
|Cover & Lifter Options|
Watkins Covers & Lifters or VacuSeal® Cover System, CoverCradle®/ProLift® III
|Footnote||*Includes water and 10 adults weighing 175 lbs. each|

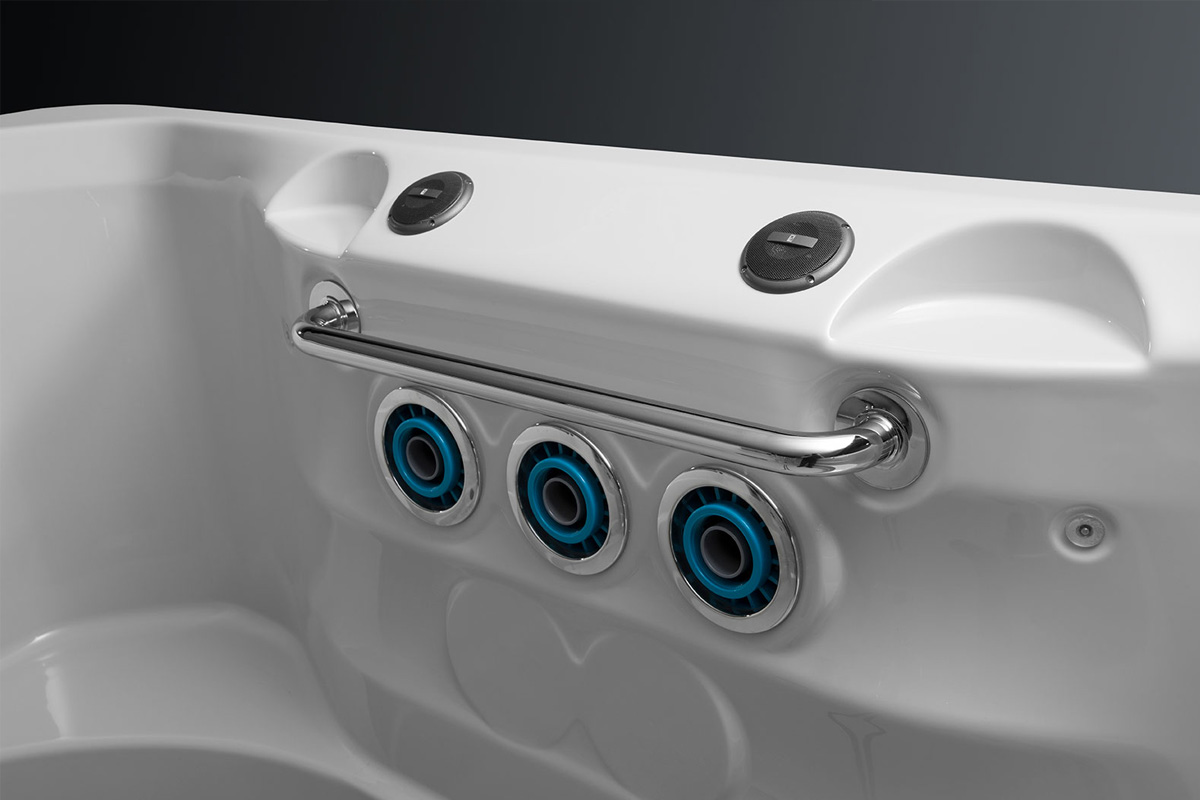

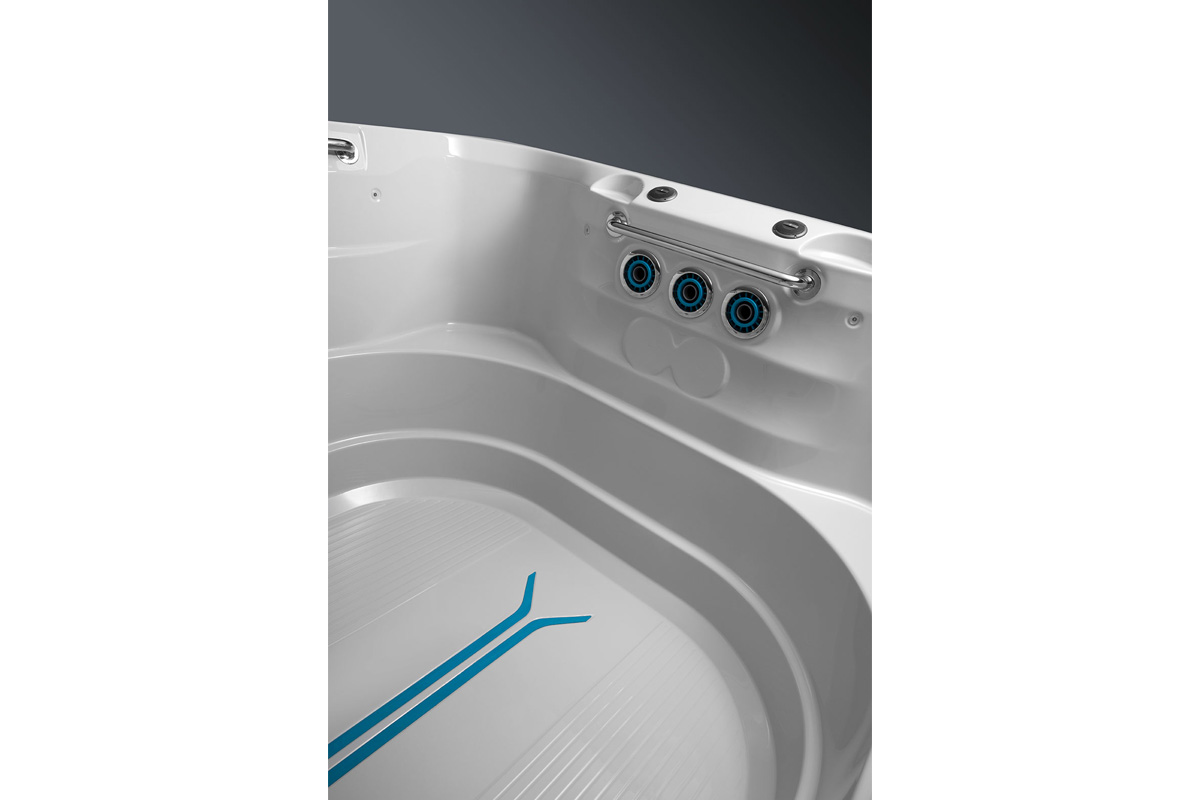

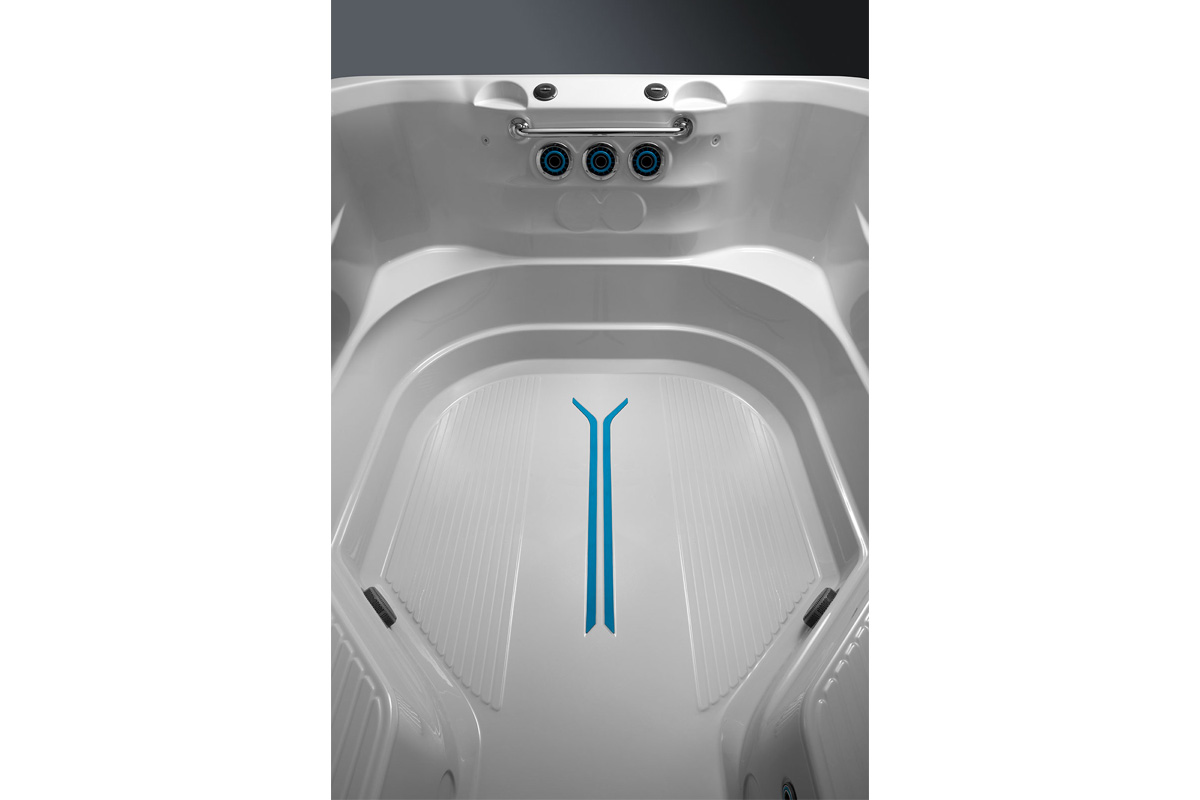

The swim jets in RecSport™ Recreation Systems provide the ideal environment for aquatic recreation at an affordable price. Three linear swim jets provide a steady stream of water that is more powerful than the average jet. The swim jets use a Venturi effect, not air, to draw-in or entrain more water, effectively multiplying the volume of water. This design feature results in a water stream with less turbulence than other swim spas on the market.
Spa Seating with Hydromassage Jets
Following your workout, there is nothing like a “cool-down” in the comfort of spa seating, with hydromassage jets soothing your muscles. Perfectly positioned in two captain’s chairs with pillows, plus a third middle seat, four jet types are combined in three configurations to deliver an ideal post-workout relaxation experience.
Mini Jet – A small and focused stream of water targets specific areas.
Directional Jet – Similar to the mini, the directional jet is focused but with a larger stream of water.
Rotary Jet – Same level of water pressure as the directional jet, but rotates for a soft tissue massage covering a larger area.
Cluster Jet – A unique soft tissue massage targets the lower back.
The stunning lighting of RecSport Recreation Systems delivers maximum design impact. Its 5” main interior light and multi-color LED points of light provide ample brilliance and beauty. The water feature is also backlit for added elegance.

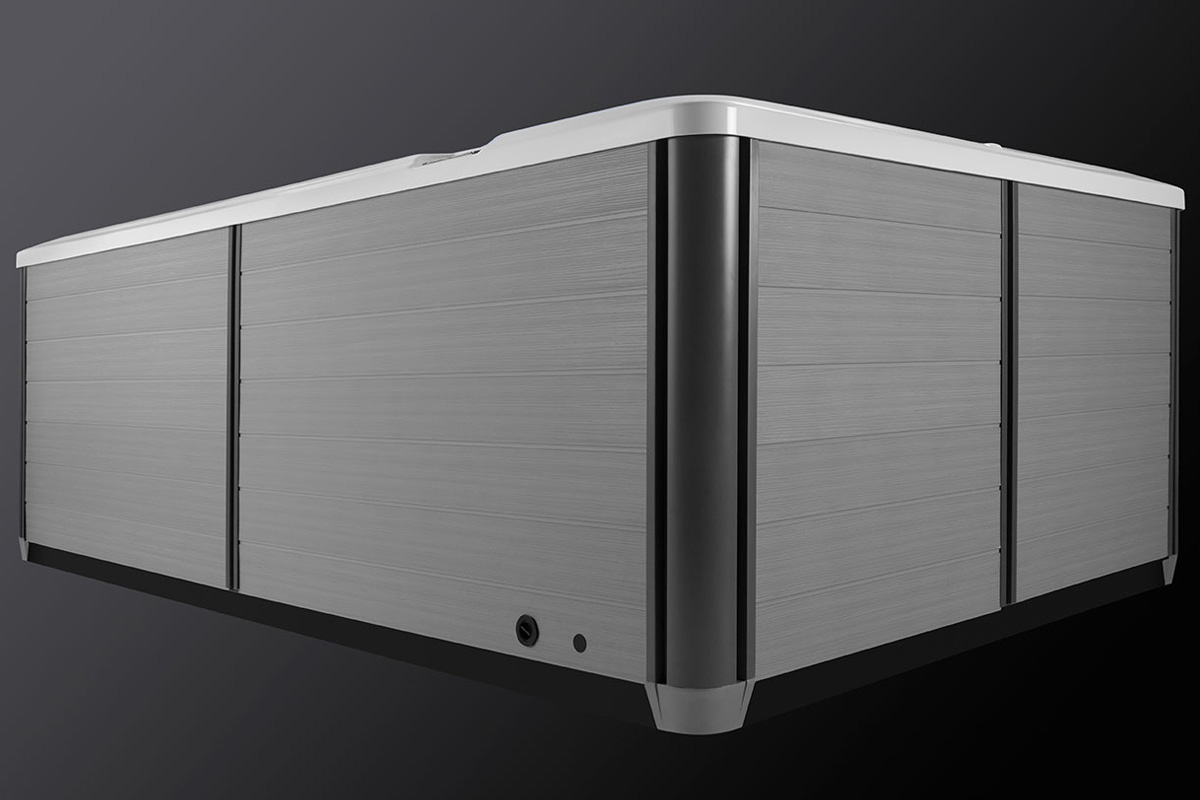

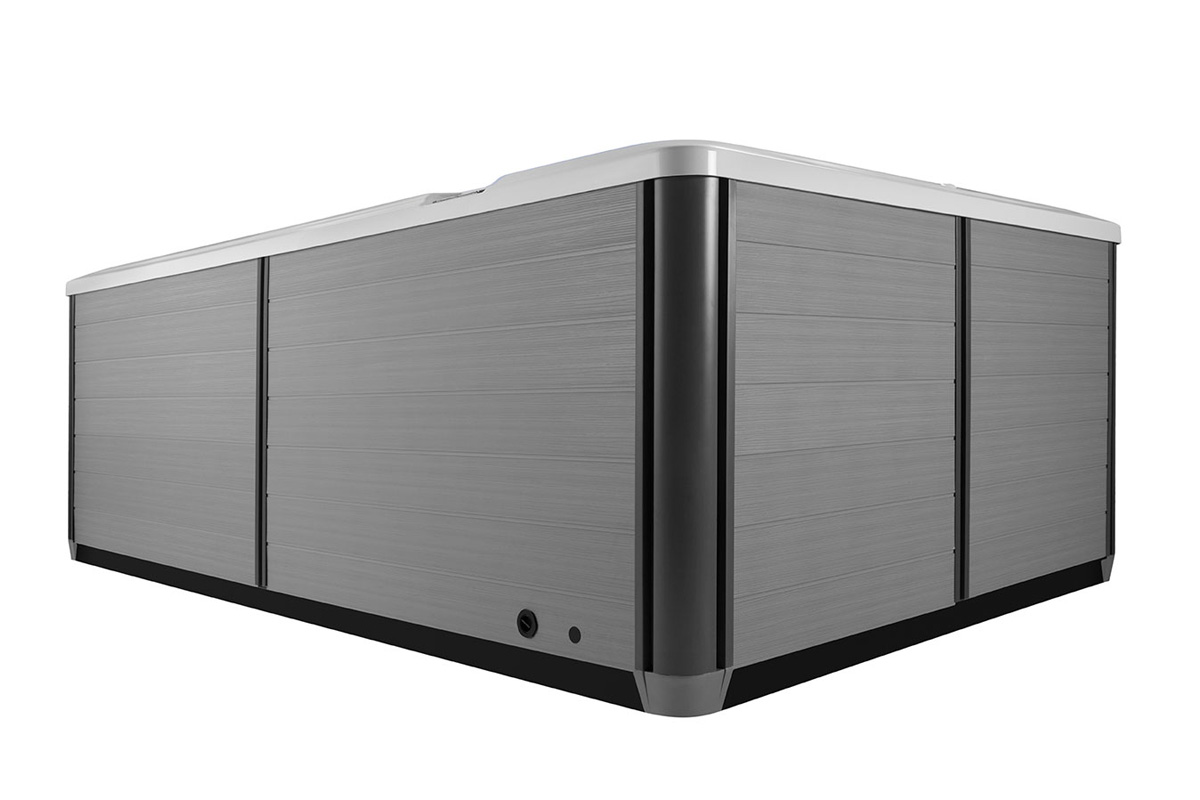

Solid Wood Frame & ABS Base Pan
RecSport Recreation Systems are built on a sturdy wood frame coupled with an ABS base pan that is built to last.
Water Management System
RecSport Recreation Systems use eco-friendly CD Ozone to neutralize contaminants. Water is circulated through the hydromassage pump on low speed for regular water circulation and optimal water quality.
The Tri-Thermic™ Barrier System, a standard feature, provides three layers of insulation to conserve heat, enhance energy efficiency, and lower operating costs. The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystyrene) foam and reflective film attached to the inside of the cabinet, combined with a two-inch thick heat blanket made of high-quality recycled textile fibers and foil film, attached on the inside of the steel frame. Together these materials provide maximum thermal performance and achieve certification to California Energy Commission (CEC) and APSP 14 National Standards.
RecSport Recreation Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting and hydromassage jets.
By installing the optional plug-and-play Gecko® In.Touch Wi-Fi and Mobile App, you’ll gain full control of the system’s temperature, lights and jets from any Wi-Fi-enabled tablet or mobile device, anywhere, anytime.
Anchors and Handrails for Aquatic Fitness Accessories
Every Fitness System is equipped with built-in anchors to attach fitness accessories including an optional swim tether, row bar set and resistance bands. The convenient and sturdy handrails are also great for support for your resistance-training workout.
RecSport Recreation Systems
Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.
Set up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.
All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.
A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.
The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.
See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.
For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.
Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.
Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.
This cover lifter’s unique design uses a hydraulic hinge to simplify opening and closing the Fitness System’s swim side cover, in an ultra-smooth gliding action. For those looking for an easy lift assist and have the extra space, the CoverCradle is an excellent option. The CoverCradle can be installed on the swim side only.

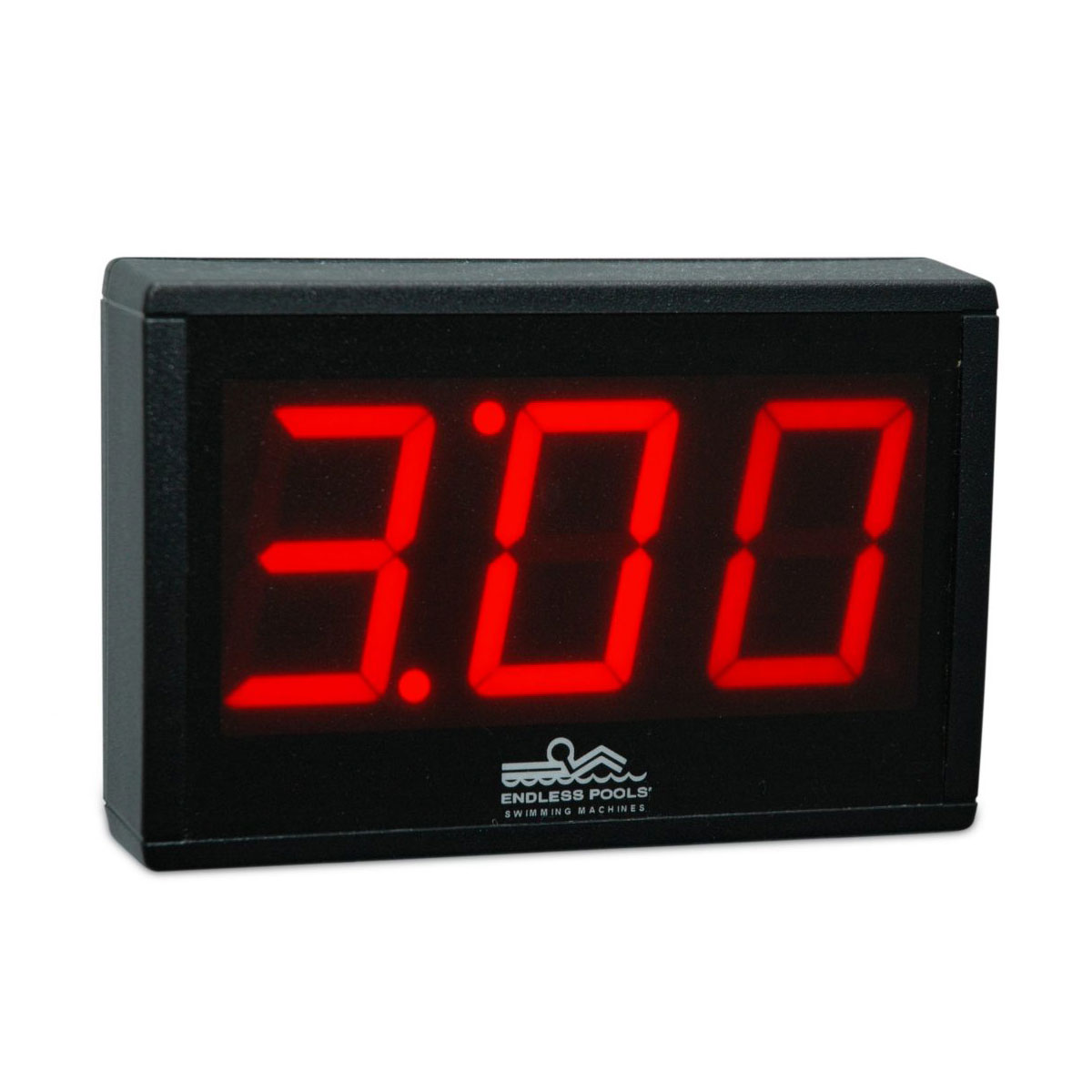

The optional pace display is a necessity for any swim machine or treadmill user who wants to measure
performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be
toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective workout.
